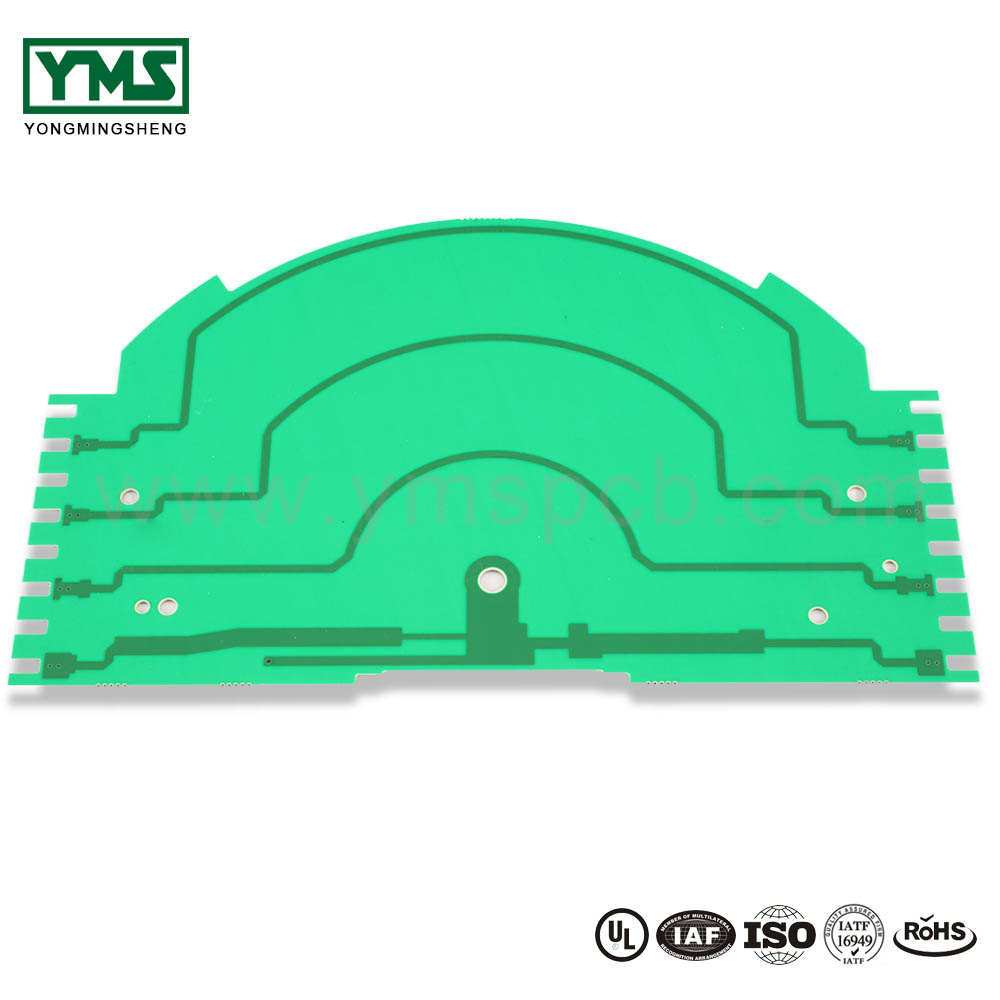

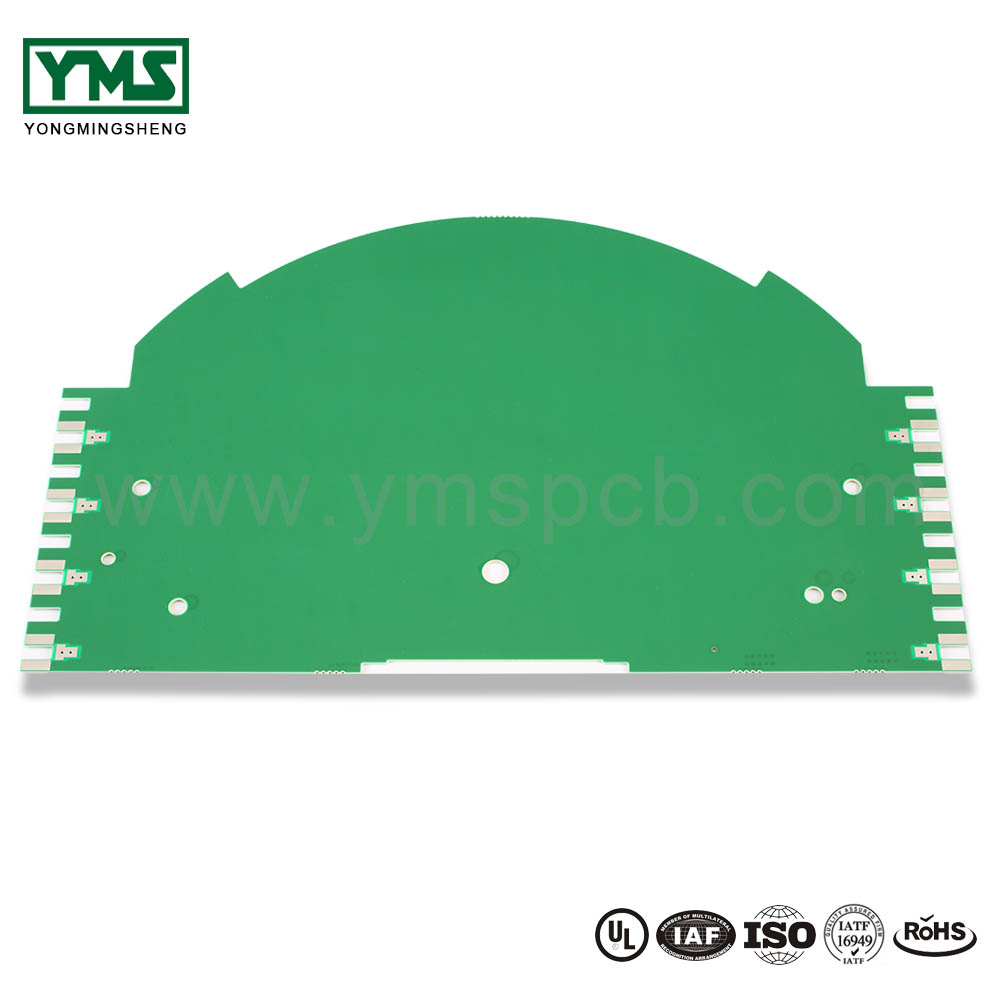

RF&Microwave PCB manufacturing microwave high frequency PTFE| YMSPCB

Short Description:

Radio Frequency and microwave PCBs are a special and innovative type of PCB designated to operate on signals in the megahertz to gigahertz frequency ranges (medium frequency to extremely high frequency).

Parameters

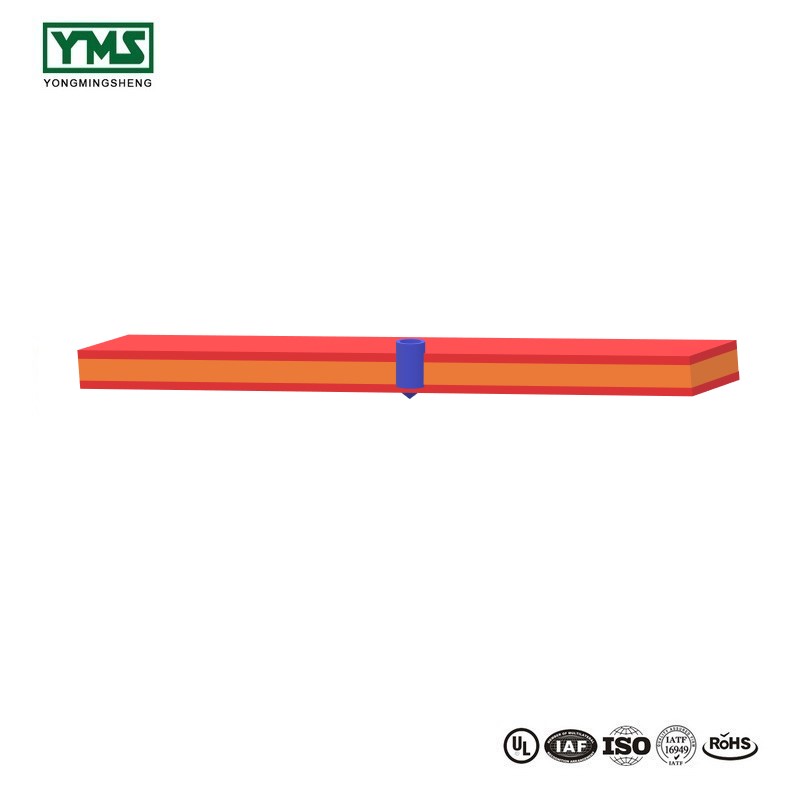

Layers: 2L PTFE

Board Thinkness:0.5mm

Base Material:Taconic TSM-DS3

Min Holes:0.3mm

Minimum Line Width/Clearance:0.2mm/0.2mm

Size:100mm×50mm

Aspect Ratio:1.67 : 1

Surface treatment:Immersion silver

Speciality: Tight Etch Tolerances on Critical RF Features:+/- .0005″ standard tolerance for unplated 0.5oz copper

impedance  50+5/-5Ω

Applications:Micro-wave




Product Detail

Product Tags

What is RF & Microwave PCB ?

Radio frequency (RF) and microwave PCB’s are a type of PCB designed to operate on signals in the medium frequency to extremely high frequency ranges (megahertz to gigahertz). These ranges are used for communication signals in everything from mobile phones to military radars.

The materials used are advanced composites with very specific characteristics for dielectric constant (Er), loss tangent, and CTE (co-efficient of thermal expansion). These materials can be mixed in the same Stack-Up for optimal performance and economics.

In order to meet increasing demands for Microwave & RF Printed Circuit Boards for our customers all around the world, we have increased our investment over the last few years so that we have become a world class manufacturer of PCBs using high frequency laminates.

RF & Microwave PCB

YMS Microwave & RF PCB manufacturing capabilities:

YMS Microwave/RF PCB manufacturing capabilities overview
Feature capabilities
Layer Count 2-14L
Available Microwave/RF PCB Technology Through hole with Aspect Ratio 16:1
buried and blind via
Mixed Dielectric Boards (PTFE+FR-4 combinations )
Suitable Microwave/RF Materials available : PTFE, FR4, Polymide, Polyester, Ceramic
Tight Etch Tolerances on Critical RF Features:+/- .0005″ standard tolerance for unplated 0.5oz copper
Multilevel cavity constructions, Copper coins and slugs, Metal Core & Metal Back, Thermally conductive laminates,Edge Plating, etc.
Thickness 0.3mm-8mm
Minimum line Width and Space 0.075mm/0.075mm(3mil/3mil)
BGA  PITCH 0.35mm
Min laser Drilled Size 0.075mm(3nil)
Min mechanical Drilled Size 0.15mm(6mil)
Aspect Ratio for laser hole 0.9:1
Aspect Ratio for through hole 16:1
Surface Finish Suitable Microwave/RF PCB urface finishes: Electroless Nickel, Immersion Gold, ENEPIG, Lead free HASL,Immersion Silver
Via Fill Option The via is plated and filled with either conductive or non-conductive epoxy then capped and plated over(VIPPO)
Copper filled, silver filled
Laser via copper plated shut
Registration ±4mil
Solder Mask Green, Red, Yellow, Blue, White, Black, Purple, Matte Black, Matte green.etc.
