Multilayer pcb Sideplating Selective hard gold Castellated Holes| YMSPCB

Short Description:

YMSPCB makes two types of Printed Circuit Boards (PCBs), one with non-metalized edges and the other with metallized edges. Earlier there was not much demand for metal-edged PCBs, but now more customers are demanding it. There is greater attention for higher quality of PCB metal edging as it enhances the functioning of several products that use these PCBs. The industry has many names for a PCB with metallized edges. Some of these names are side plating, plated contour, border plating, edge plating, castellation, etc.


Product Detail

FAQ

Product Tags

What is Multilayer PCBs

Multilayer Printed Circuit Board, It is a type of PCB which comes with a combination of single sided PCB and double sided PCB. It features layers more than double sided PCB.

PCB with special requirements from industries

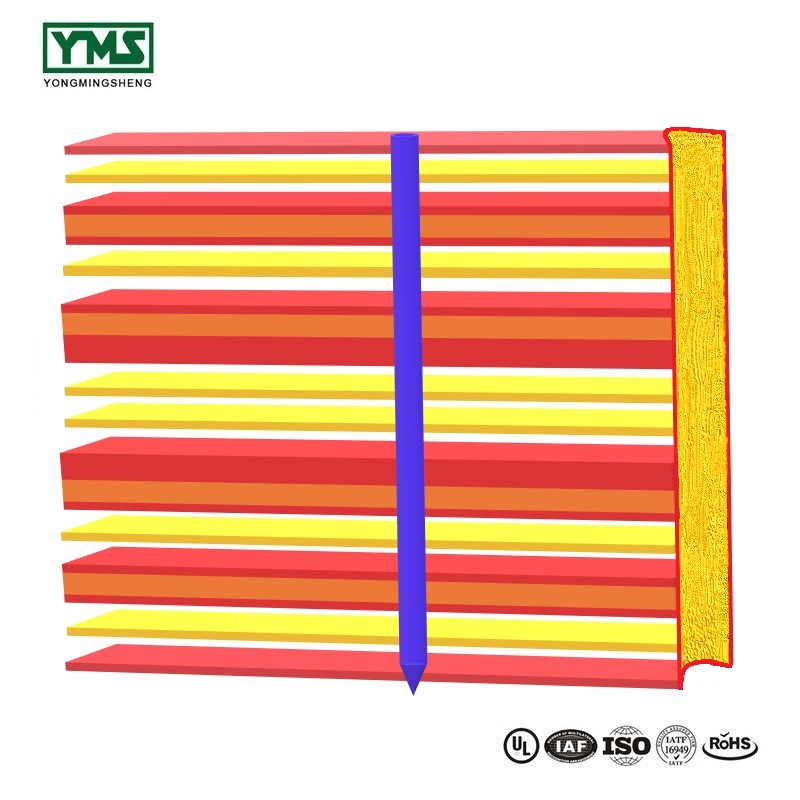

PCB Sideplating

Sideplating is the metalization of the board edge in the PCB filed. Edge plating, Border plated, plated contour, side metal, these words can also be used to describe the same function.

Half-cut Castellated Holes

Castellations are plated through holes or vias located in the edges of a printed circuit board. are indentations created in the form of semi-plated holes on the edges of the PCB boards.These half holes serve as pads intended to create a link between the module board and the board that it will be soldered onto.

Parameters

Layers: 10L multilayer pcb

Board Thinkness:2.0mm

Base Material:S1000-2 High tg

Min Holes:0.2mm

Minimum Line Width/Clearance:0.25mm/0.25mm

Minimum Clearance between Inner Layer PTH to Line: 0.2mm

Size:250.6mm×180.5mm

Aspect Ratio:10 : 1

Surface treatment:ENIG+ Selective hard gold

Process characteristics: High tg, Sideplating, Selective hard gold, Half-cut Castellated Holes

Applications: Wi-Fi modules

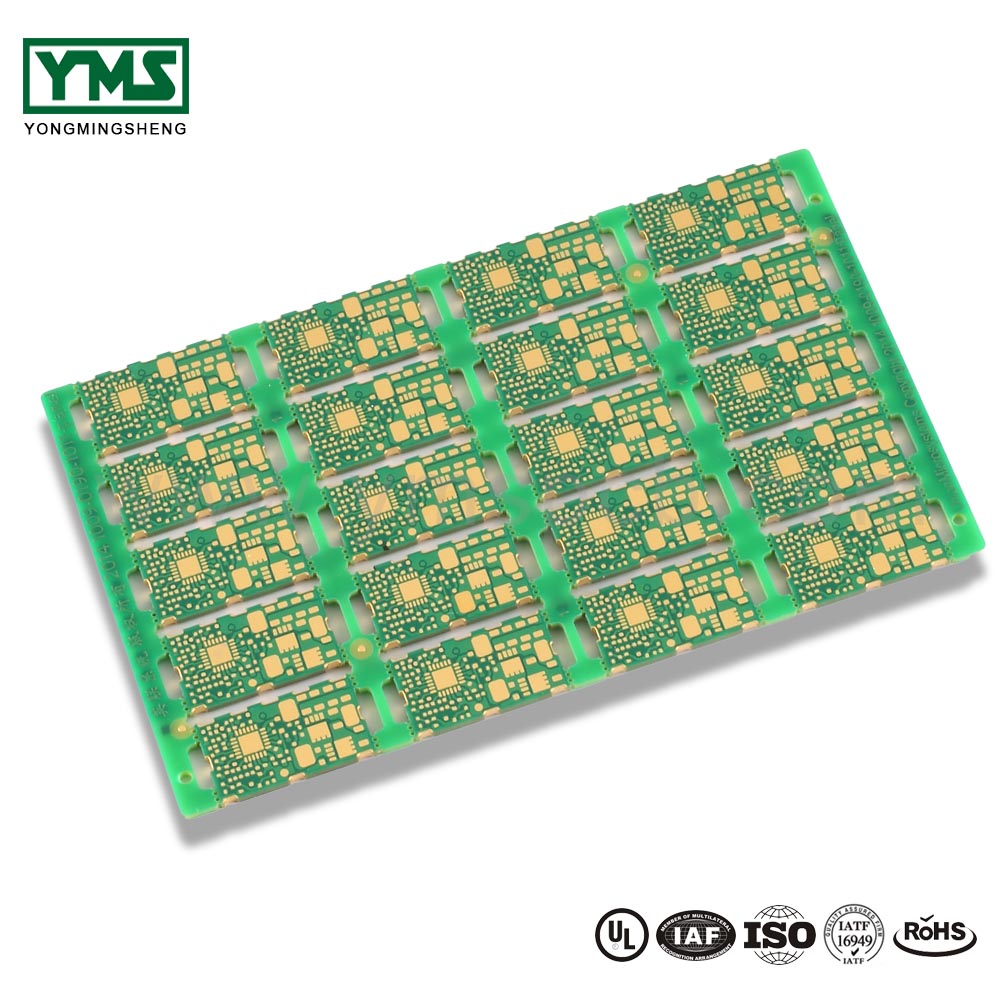

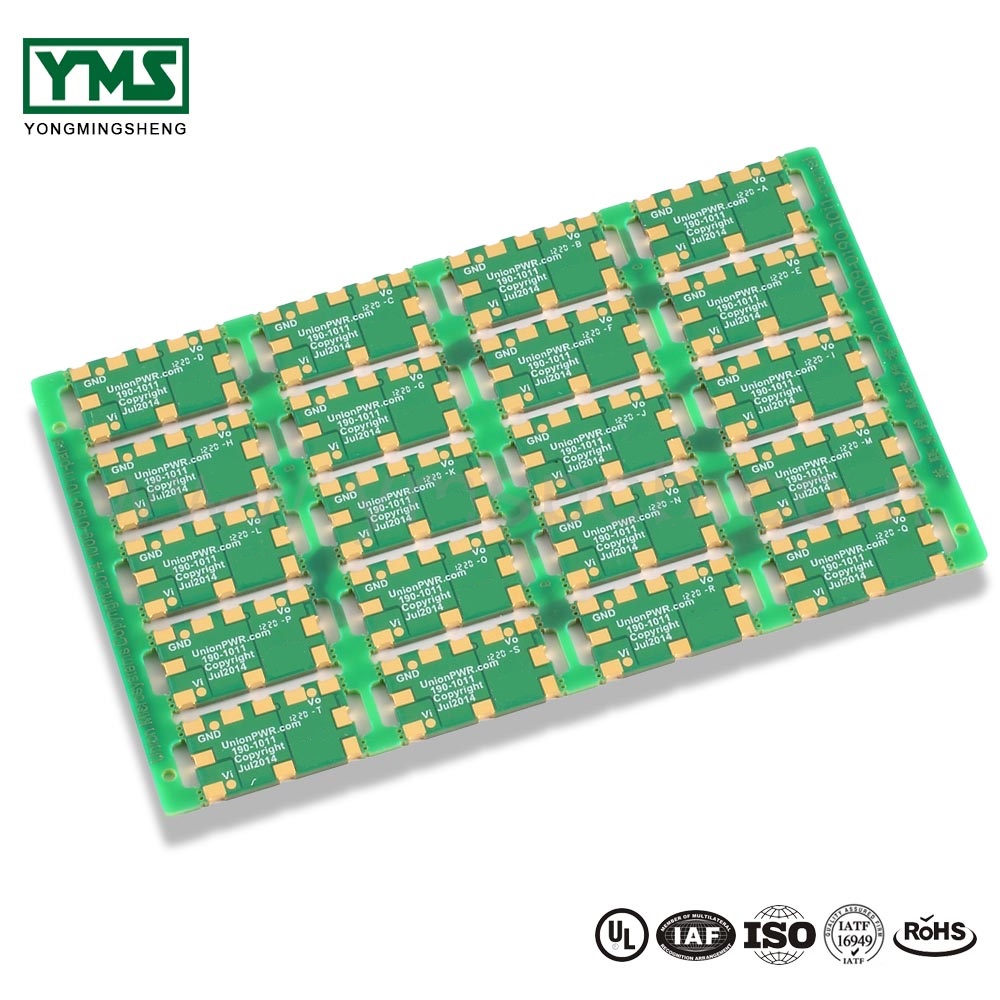

 Sideplating and Half-cut Castellated Holes

YMS Multilayer PCB manufacturing capabilities:

YMS Multilayer PCB manufacturing capabilities overview
Feature capabilities
Layer Count 3-60L
Available Multilayer PCB Technology Through hole with Aspect Ratio 16:1
buried and blind via
Hybrid High Frequency Material such as RO4350B and FR4 Mix etc.
High Speed Material such as M7NE and FR4 Mix etc.
Thickness 0.3mm-8mm
Minimum line Width and Space 0.05mm/0.05mm(2mil/2mil)
BGA  PITCH 0.35mm
Min mechanical Drilled Size 0.15mm(6mil)
Aspect Ratio for through hole 16:1
Surface Finish HASL, Lead free HASL,ENIG,Immersion Tin, OSP, Immersion Silver, Gold Finger, Electroplating Hard Gold, Selective OSP,ENEPIG.etc.
Via Fill Option The via is plated and filled with either conductive or non-conductive epoxy then capped and plated over(VIPPO)
Copper filled, silver filled
Registration ±4mil
Solder Mask Green, Red, Yellow, Blue, White, Black, Purple, Matte Black, Matte green.etc.

What is hard gold in PCB?

The Hard Gold surface finish, also known as Hard Electrolytic Gold, is composed of a layer of gold with added hardeners for increased durability, plated over a barrier coat of nickel using an electrolytic process.

What is hard gold plating?

Hard gold plating is a gold electrodeposit that has been alloyed with another element to alter the grain structure of the gold to achieve a harder deposit with a more refined grain structure. The most common alloying elements used in hard gold plating are cobalt, nickel or iron.Oct 4, 2017

What is the difference between Enig and hard gold?

ENIG plating is much softer than hard gold plating. Grain sizes are about 60 times larger with ENIG plating, and hardness runs between 20 and 100 HK25. ENIG plating holds up well at only 35 grams of contact force or less, and ENIG plating typically lasts for fewer cycles than hard plating.



  A popular trend among manufacturers is board-to-board soldering. This technique allows companies to produce integrated modules (often containing dozens of parts) on a single board that can be built into another assembly during production. One easy way to produce a PCB that is destined to be mounted to another PCB is to create castellated mounting holes. These are also known as "castellated vias" or "castellations."

a


https://www.ymspcb.com/multilayer-pcb-sideplating-selective-hard-gold-castellated-holes-ymspcb.html



  • Previous:
  • Next:

  • Is 3 layer PCB possible?

    Yes,It’s possible.

    Which vias is used for multilayer PCB?

    There are different types of PCB vias according to their functionality, however, the three most commonly used via are blind via, buried via as well as through hole. Plated through hole is the most common type of via, in fact, it is a hole dug completely through the multiple layers of a PCB.

    How many layers are there in multilayer PCB?

    4 – 22 layers standard, 30 layers advanced, 40 layers prototype.
