Double sided pcb Normal pcb Lead free HASL Counterbore Manufacturer | YMS PCB

Short Description:

The typical thickness of HAL(Lead Free) is 1-40um and the shelf life is 12 months.

YMSPCB is a professional PCBwholesale manufacturer, providing turnkey service for all types of PCB manufacturing and PCB assembly.

Parameters

Layers: 2 Double sided PCB

Thickness:1.6mm

Base Material: S1150G Halogen Free

Mininum Hole Size:0.2mm

Minimum Line Width/Clearance:0.15mm/0.15mm

Size:480mm×450mm

Aspect Ratio:8 : 1

Surface treatment:Lead free HASL

Special technique: Counterbore

Applications:Main Board / Consumer electronics




Product Detail

Product Tags

HAL(Lead Free), the full name is Hot Air leveling with Lead Free. Compared with HASL, the main difference for HAL(Lead Free) is the element of material which do not contain Lead(Pb), so it’s RoHS Compliant and it’s much more popular and widely used in PCB manufacturing.

HAL(Lead Free) requires higher run temperatures for lead free solder and longer contact time, the production cost for HAL(Lead Free) is slightly higher than HASL(Tin/Lead).

The manufacturing process of HAL(Lead Free) is similar to HASL(Tin/Lead), the circuit boards will be submersed in molten solder(Lead Free). This solder will cover all the exposed copper surfaces. Upon retraction from the solder, high pressure hot air is blown over the surface through air knives, this levels the solder deposit and removes the excess solder from the surface of printed circuit boards.

Printed Circuit Board Introduction

Normal Printed Circuit Board: Most PCBs for simple electronics are simple and composed of only a single layer. More sophisticated hardware such as computer graphics cards or motherboards can have 2 or multiple layers, sometimes up to twelve.

A printed circuit board (PCB) mechanically supports and electrically connects electrical or electronic components using conductive tracks, pads and other features etched from one or more sheet layers of copper laminated onto and/or between sheet layers of a non-conductive substrate. Components are generally soldered onto the PCB to both electrically connect and mechanically fasten them to it.PCBs can be single-sided (one copper layer), double-sided (two copper layers on both sides of one substrate layer), or multi-layer (outer and inner layers of copper, alternating with layers of substrate). Multi-layer PCBs allow for much higher component density, because circuit traces on the inner layers would otherwise take up surface space between components. The rise in popularity of multilayer PCBs with more than two, and especially with more than four, copper planes was concurrent with the adoption of surface mount technology.

Types-of-PCB YMSPCB

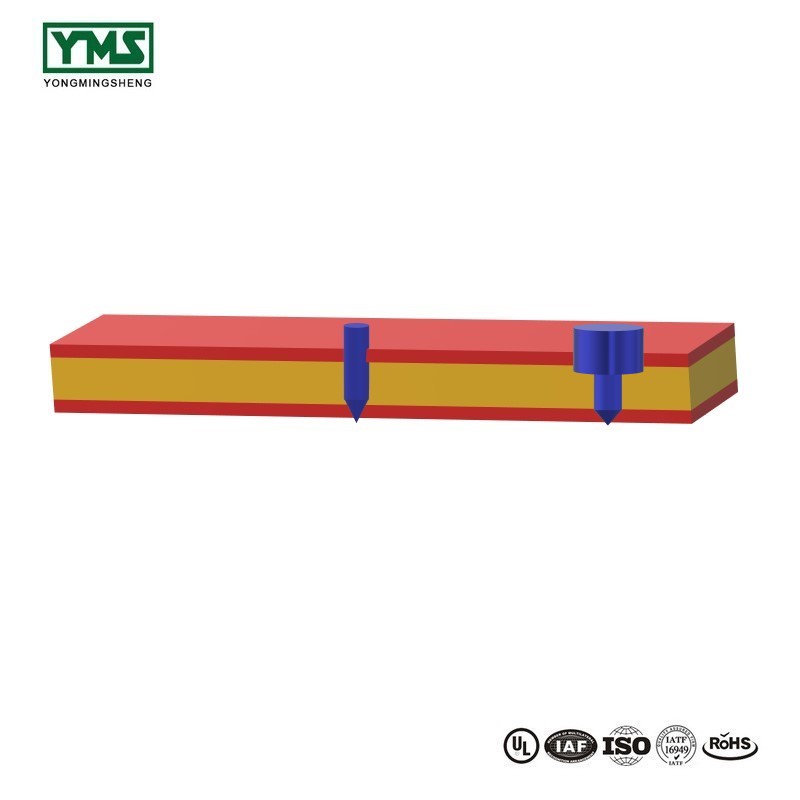

 What is the difference between a Countersink and a Counterbore?

Counterbore and Countersink

YMS Normal PCB manufacturing capabilities:

YMS Normal PCB manufacturing capabilities overview
Feature capabilities
Layer Count 1-60L
Available Normal PCB Technology Through hole with Aspect Ratio 16:1
buried and blind via
Hybrid High Frequency Material such as RO4350B and FR4 Mix etc.
High Speed Material such as M7NE and FR4 Mix etc.
Material CEM- CEM-1;CEM-2;CEM-4;CEM-5.etc
FR4 EM827, 370HR, S1000-2, IT180A,  IT158,   S1000 / S1155, R1566W, EM285, TU862HF,NP170G etc.
High Speed Megtron6, Megtron4, Megtron7,TU872SLK,   FR408HR,N4000-13 Series,MW4000,MW2000,TU933 etc.
High Frequency Ro3003, Ro3006, Ro4350B, Ro4360G2, Ro4835, CLTE, Genclad, RF35, FastRise27 etc.
Others Polyimide, Tk, LCP, BT, C-ply, Fradflex, Omega   , ZBC2000,PEEK,PTFE,ceramic-based  etc.
Thickness 0.3mm-8mm
Max.copper Thickness 10OZ
Minimum line Width and Space 0.05mm/0.05mm(2mil/2mil)
BGA  PITCH 0.35mm
Min mechanical Drilled Size 0.15mm(6mil)
Aspect Ratio for through hole 16:1
Surface Finish HASL, Lead free HASL,ENIG,Immersion Tin, OSP, Immersion Silver, Gold Finger, Electroplating Hard Gold, Selective OSP,ENEPIG.etc.
Via Fill Option The via is plated and filled with either conductive or non-conductive epoxy then capped and plated over(VIPPO)
Copper filled, silver filled
Registration ±4mil
Solder Mask Green, Red, Yellow, Blue, White, Black, Purple, Matte Black, Matte green.etc.
